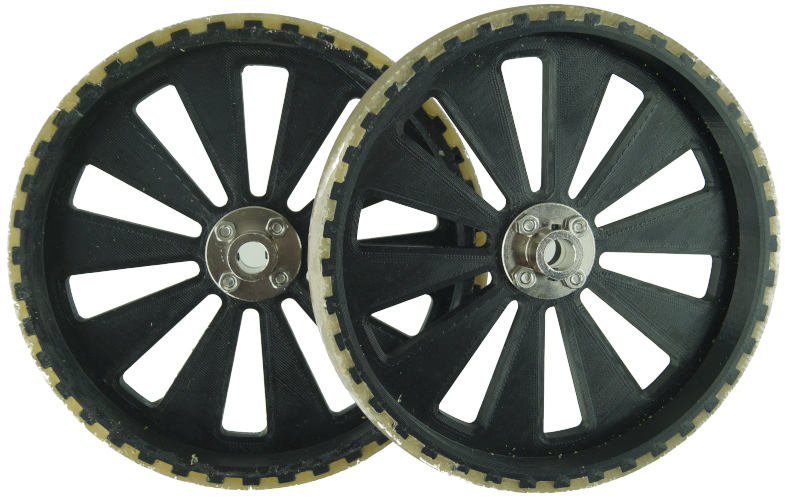

Figure 1. 6" Wheels
These 6" wheels are 3D printed, and rimmed with a molded soft urethane tread for good traction. (These wheels replace the Actobotics wheels used in the orignal design which are now obsolete.)
The wheels include the mounting hardware needed to mount them to the 10mm diameter shaft of the motors. The hardware consists of 2 sets of: 1 Chinese made 10mm diameter flanged motor shaft coupler, 4 4M nuts, and 4 4Mx12 socket head screws. If you want to create your own wheels you can get the flanged motor shaft couplers from www.aliexpress.com.
Ordering Info
| Part Number | Description | Price | Purchase |
|---|---|---|---|
| WHEEL-PAIR-6" | Pair of 6" Wheels, with mounting hardware. | $29.95/pair |
The Open Wheelchair hardware design is licensed under CERN Open Hardware Licence v1.2 and the Software is licensed under the GNU General Public License Version 3. By viewing or using the design posted on this website you are agreeing to these licenses. To view the license see our license page.
